Features

• Identification methods include Face, Fingerprint/RFID and/or Password
• Elegant ergonomic design
• 4.3’’ TFT touch screen is user-friendly and very intuitive
• 6 user-defined function keys
• Contact relays for door access control (wires to door strike or 3rd party panel)
• Web server management software via IE browser.
• Optional extendable scheduled-bell
• Infra-red optical system enables user-identification in poorly lit environments
• Optional built-in battery backup provides approx 4 hours continuous operation.
• Optional built-in wireless Wi-Fi or GPRS for wireless communication.
• Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
• Wiegand Output for connections to 3rd party access control panels.

Print this page

Specifications:

• Display: 4.3’’ TFT touch screen
• Face Capacity: 400(1:N)
• ID Card Capacity: 10,000
• Logs Capacity: 100,000
• Communication: TCP/IP,RS232/485
• Power Supply: 12V/1.5A
• Verification Speed: ≤2 sec
• Operating Temperature: 0 ℃- 45 ℃
• Operating Humidity: 20%-80%
• Dimensions: 193.6*165*111 mm (Length*Width*Thickness)
• Net Weight: 1.70 kg

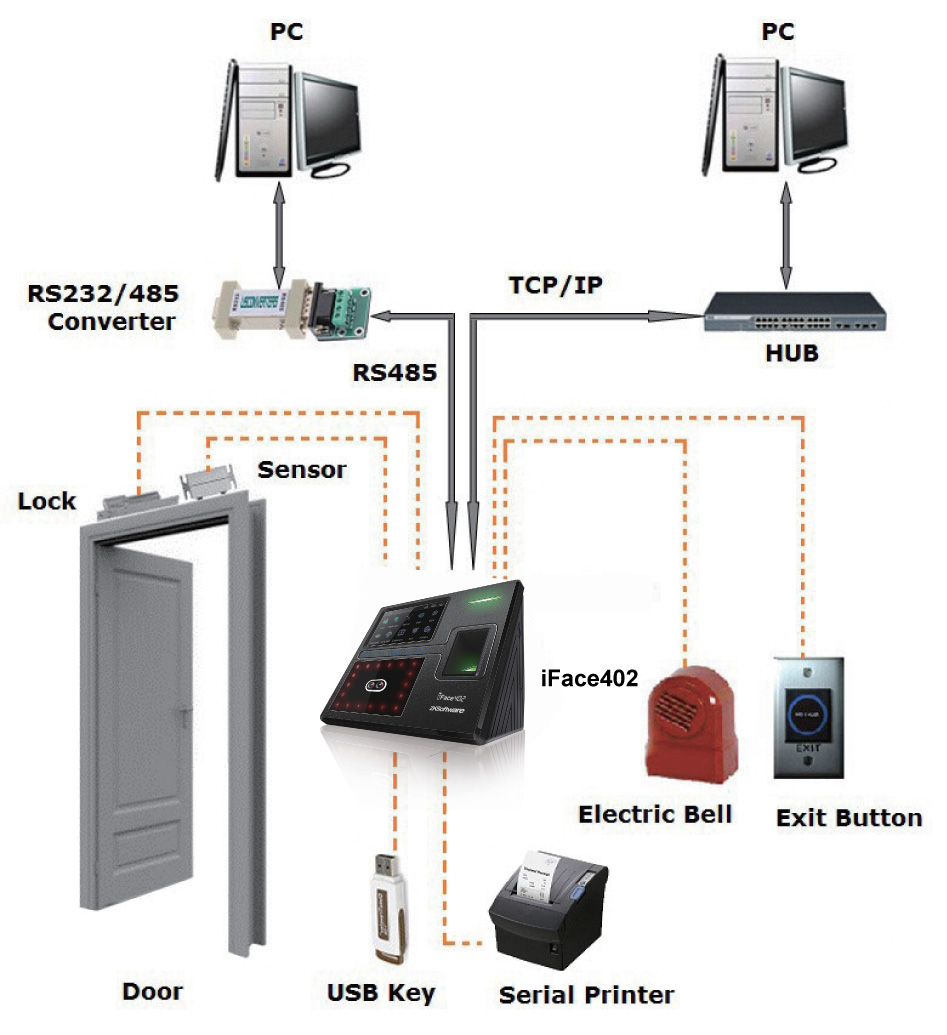

Connection Diagram:

•
