Features

• Identification methods include Face, Fingerprint/RFID and/or Password
• Elegant ergonomic design
• 4.3’’ TFT touch screen is user-friendly and very intuitive
• 6 user-defined function keys
• Contact relays for door access control (wires to door strike or 3rd party panel)
• Web-server management software via IE browser
• Optional extendable scheduled-bell
• Infra-red optical system enables user-identification in poorly lit environments
• Optional built-in battery backup provides approx 4 hours continuous operation.
• Optional built-in wireless Wi-Fi or GPRS for wireless communication
• Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
• Wiegand Output for connections to 3rd party access control panels.

Print this page

Specifications:

• CPU: ZK Multi-Bio CPU 630 MHz
• Memory: 256M Flash, 64M SDRAM
• Hardware Platform: ZEM600 Multi-Medium Development Platform
• Fingerprint Sensor: None
• Camera: High Resolution Infrared Camera
• Display: 4.3’’ TFT touch screen
• Face capacity: 400 (1:N)
• Fingerprint capacity: None
• ID Card capacity: 10,000
• Logs capacity: 100,000
• Communication: TCP/IP,RS232/485
• USB-HOST: Two USB-Host
• Access control interfaces for: 3rd party electric lock, door sensor, exit button
• Optional functions: serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS
• Power supply: 12V3A
• Verification Speed: ≤2 sec
• Operating temp: 0℃- 45 ℃
• Operating Humidity: 20%-80%
• Dimension: 193.6*146.8*111 mm (Length*Width*Thickness)
• Gross Weight: 1.65 kg

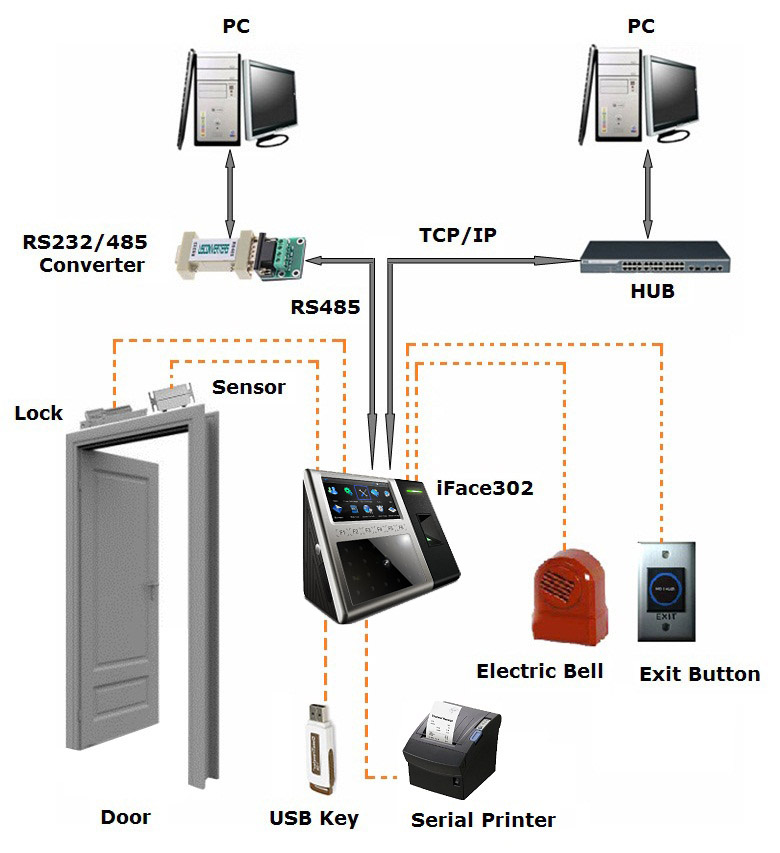

Connection Diagram:

•
