Analog Camera

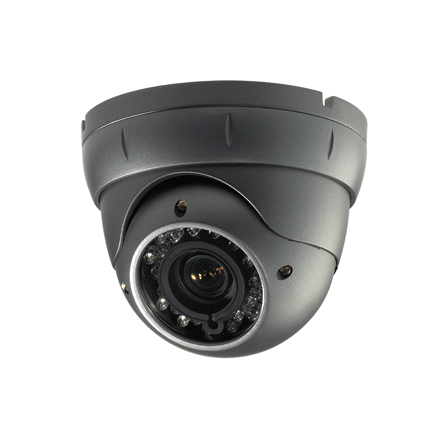

CNB LFM-20VF/LFM-21VF

  • cctv analog Camera IR Dome
  • cctv analog Camera IR Dome
  • cctv analog Camera IR Dome

Features

  • 1/3" High Sensitivity CCD
  • Ultra High Resolution : 600 TV Lines (BW 650TV Lines)
  • Built-in Vari-focal Lens(f=3.8~9.5mm)
  • Intelligent IR Technology
  • Built-in IR LEDs(25ea)
  • Min. Illumination : 0.00Lux (IR LED On)
  • Auto White Balance
  • AGC, SBLC
  • 3-Axis Movement for Free Lens Rotation
  • 90m Eye Ball Size
  • Vandal-Resistant Dome Housing
Datasheets Print this page

Specification

  • Weight: Approx. 848g

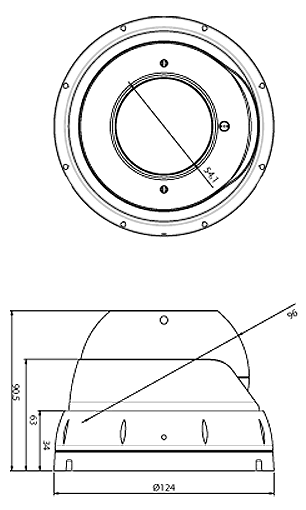

  • Architect & engineering drawing
