ZKTECO ZK Access Systems C3-100

  • Access Control System Control Panel

Features

  • Multiple hardware protection measure
  • There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
  • Integration with Other Security Systems
  • C3-100 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
  • Supports different wiegand reader
  • The controller support different wiegand format, and can connect to different reader, including ID card reader and Mifare card reader
  • Input/Output Ports to Control Doors
  • Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
  • Variety of Communication Function
  • Using either serial or TCP/IP communication, it provides reliable network system
  • B/S structure software
  • It is easy to manage the system by browser from client PC. There is no need to install software on each client.
  • Normal open after first punch card can be setup
  • Real-time Monitoring of Door status
  • Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
  • Simple Access Control System Configuration
  • Interlock function
  • Link different doors with special logic that one door is Open, others should be closed.
  • Multi-card operation
  • This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
  • Anti-Passback
  • Duress Mode
  • SDK available
  • The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
Print this page

Specifications:

  • Model: C3-100
  • CPU: 32bit MIPS CPU
  • RAM: 32M bits
  • Flash Memory: 256M bits
  • User: 30,000
  • LED Indicator: Yes, LED indication for communication, power, status and punch card
  • Operating Temperature: Less than 1second
  • Operating Humidity: 0 ℃- 45 ℃
  • Dimension (L*W)mm: 160(W)*106(H)(single board ) 345(W)*275(H)*70(D)(with power supply and metal box)
  • Certification: CE, FCC

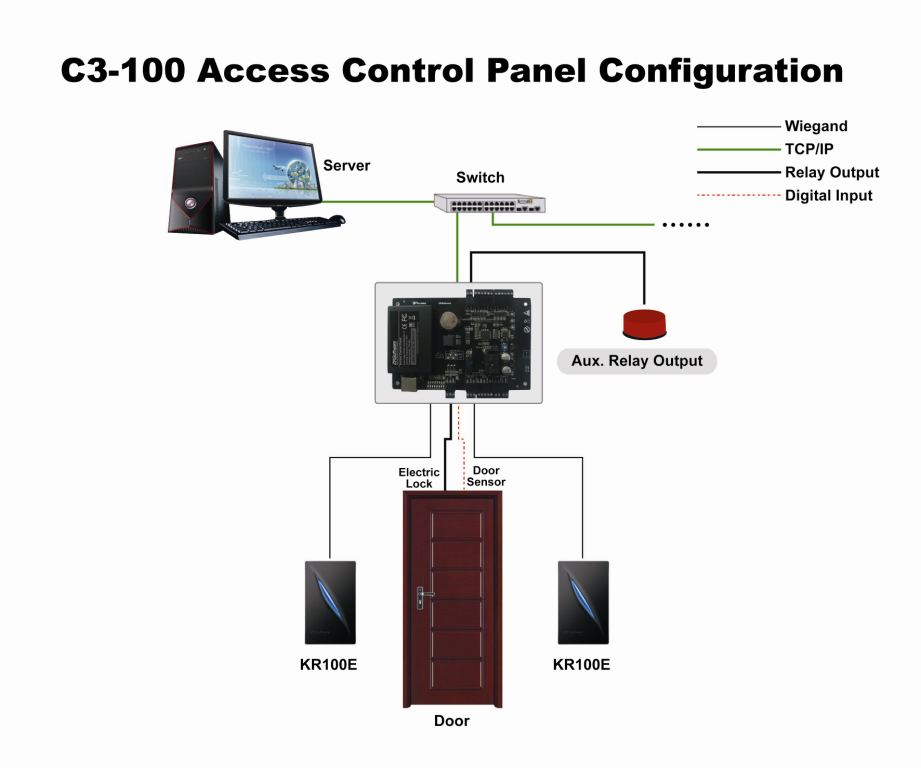

Connection Diagram:
